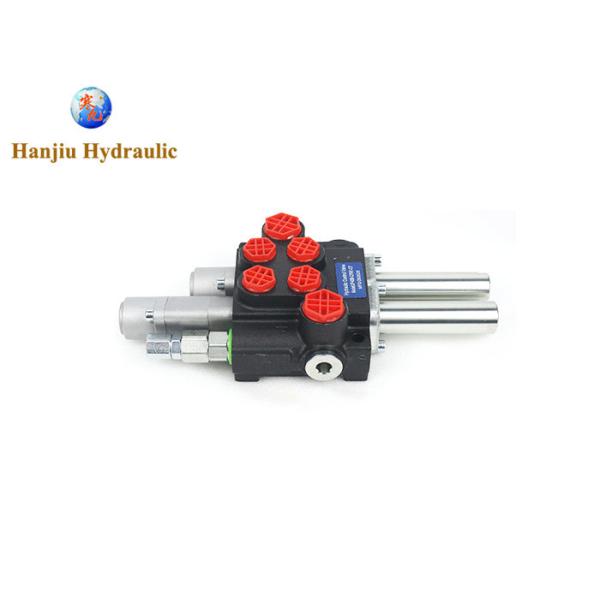

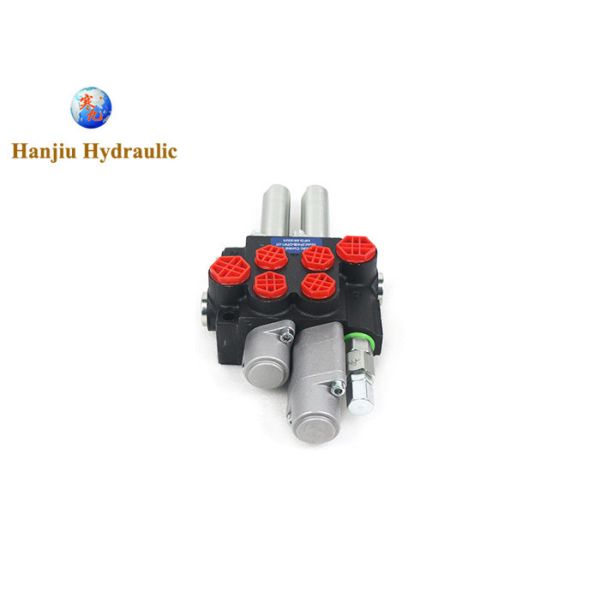

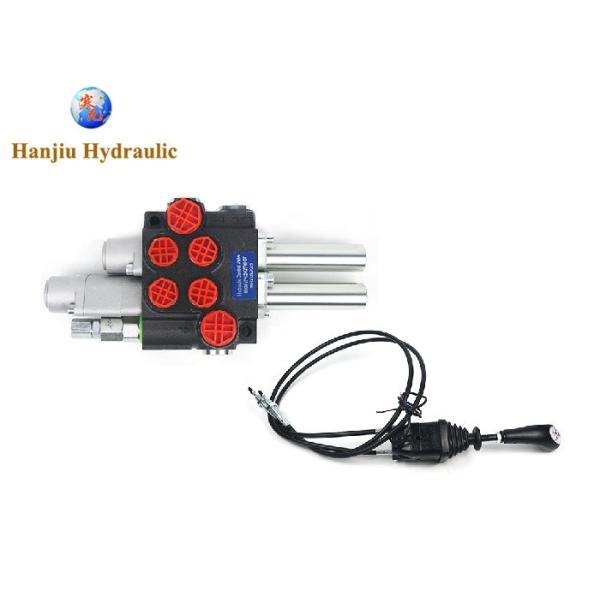

2-section hydraulic distributor, max flow 40L, 1-floating section - cable-controlled,P40 monoblock valve
type code
P40-2: manual control +floating control
Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G1/2
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G1/2
Outlet Port Option: G1/2
Application :
Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles
| flow rate | 40 liters |
| number of spools | 2 spools+ 1 joystick |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G1/2 |
| spool type | 3 Positions, Double Acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G1/2 |
| outlet section type | top outlet,side |
| outlet port size | G1/2 |
It is therefore worth investing in a hydraulic distributor with a floating position to ensure comfort and safety when working with hydraulic devices. Thanks to this, you will be able to perform your tasks effectively and enjoy the stability and precision of the device.

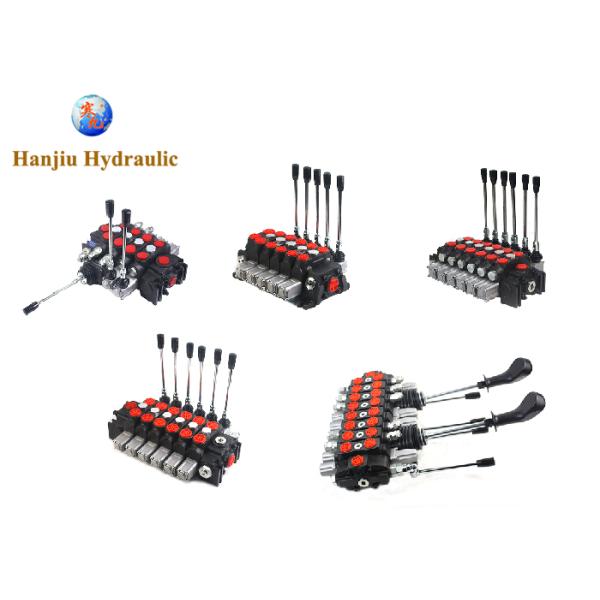

Different types
Nowadays, hydraulic control system is widely used in various industrial fields, such as machine tools, metallurgy, mining, construction, aviation, aerospace, military and so on. It has the advantages of stable transmission, large power output, fast response speed, high control accuracy, etc. It has become an important part of modern industrial automation. Hydraulic control system has the advantages of large power output, high reliability, low noise, small size, light weight, high efficiency and energy saving.
If you want to know more professional knowledge about hydraulic control, you can visit the official website of Hanjiu, which manufactures hydraulic pumps and spare parts. The products are sold all over the world and have gained good reputation and feedback. Currently, we have agents in more than ten countries and regions around the world.
